Aro PD05A-AAS-FTT-B 1/2 inch NPT(F) aluminium air diaphragm drum pump kit (PTFE Teflon) 45 lpm 6.9 bar (100 psi)

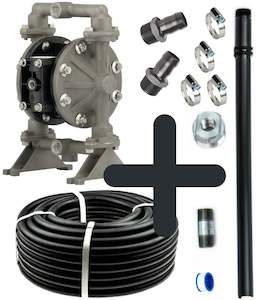

Aro PD05A-AAS-FTT-B 1/2 inch NPT(F) aluminium air diaphragm drum pump kit
Model PD05A-AAS-FTT-B
Suitable for oil, diesel and water
45.4 lpm
6.9 bar (100 psi)
1/2 inch NPT(F) fluid ports
Solids handling to 2.4 mm
Maximum dry suction lift to 4.5 m
Drum suction kit includes:
. telescopic poly drum suction tube 584 mm to 1029 mm length range (23 - 40.5 inches)
. thread tape
. 10 m x 19 mm (3/4 inch) SD hose
. 50 mm (2 inch) drum nut for steel 205 litre drums
. hose fittings and hose clamps
Materials:
. aluminium manifold
. stainless steel hardware
. aluminium ball seats
. PTFE (Teflon balls)
. PTFE (Teflon) diaphragms with Santoprene backing
Applications include:
Oil
Diesel
Water
Optional accessories:
87.66073-1 air line connection kit: contains piggyback filter / regulator, pipe nipple and 1.5 m section of hose
87.637438 ported exhaust kit
87.93110 air motor muffler
87.76763 wall mount bracket
87.67165-X cycle actuation kit
87.637428 air section service kit
