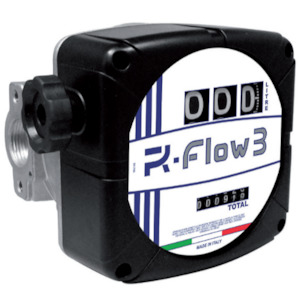

Adam R-Flow 3C flow meter 1 inch BSP(F) for diesel and oil 20 to 120 lpm 10 bar (145 psi)

Adam R-Flow 3C diesel and oil flow meter
Ports: 1 BSP(F) threaded and flanged
Suitable for pump type and gravity tank flow systems
Batch digit display: 3
Cumulative total digit display: 6
Unit of measure: litres
Field calibration: Yes
Measuring system: mechanical type oscillating disc
Protection: IP55
Outlet port position can be simply changed to: up, down, right or left
Performance:
Min flow rate: 20 lpm
Max flow rate: 120 lpm
Pressure max: 10 bar (145 psi)
Burst pressure: 30 bar (435 psi)
Temperature range: -20°C to 50°C
Accuracy: ± 1%
Repeatability: 0.2%
Noise at less 1 meter
