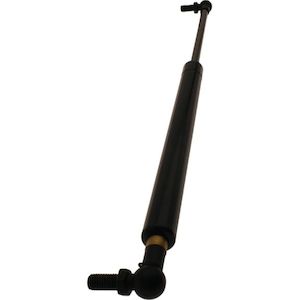

#56391 Black 910mm Gas Strut 250Kg
Height of door (R) ÷ 2 = approximate extended length. However if the door width exceeds 1.5m then the height of the door x 0.7 equals the approximate extended length.
0
0
Increase dimension ‘P’ if door needs to be less than 90°
Decrease dimension ‘P’ if door needs to be more than 90°
Adjustable for less pressure
Supplied with instruction sheet and allen key (for reducing gas strut pressure)
Supplied with right angle ball joints and a metric thread at each end
Temperature range -30°C to 80°C
A = 28mm
B = 400mm
G = 910mm
P = 330mm
E = 14mm
D = M10
W = M10
X = M10
K = 19mm
Pressure Supplied = 250kg
×
