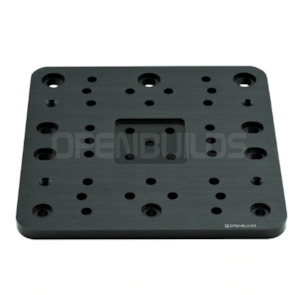

C-Beam® Gantry Plate - XLarge

A wide stance capable of housing up to 6 wheels creating an extremely stable gantry. A key component in belt & pinion as well as lead screw transmissions. This plate has r ecessed holes for professional flush mounts and t apped holes to facilitate a 90° connection between any two XLarge Gantry Plates which is ideal for XY configurations. Product Features

- Wide stance
- C-Beam and V-Slot 20x80mm compatible
- Countersunk holes
- Tapped holes
- Center recess
- Multiple mounting configurations Product Specifications

- Size: 125 x 125mm
- Thickness: 6mm
- Material: 6061 – T5 Aluminum
- Finish: Brushed and anodized
- Color: Black
- Ultimate tensile strength of at least 190 MPa (28,000 psi) Part Details

- 1 x XLarge C-Beam Gantry Plate
