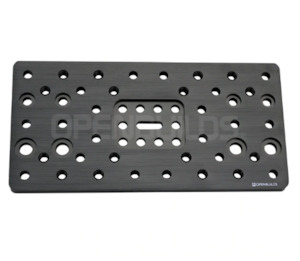

C-Beam® Gantry Plate - Double Wide

Expanding on the popular C-Beam gantry plate, this Double Wide version can host up to 8 Mini V Wheels for an exceptionally stable gantry. Elongated to provide even more mounting surface, this Gantry Plate is p rofessionally milled. Product Features

- Extra long
- C-Beam and V-Slot 20x80mm compatible
- Countersunk holes
- Tapped holes
- Center recess
- Multiple mounting configurations Product Specifications

- Size: 155 x 75mm
- Thickness: 6mm
- Material: 6061 – T5 Aluminum
- Finish: Brushed and anodized
- Color: Black
- Ultimate tensile strength of at least 190 MPa (28,000 psi) Part Details

- 1 x C-Beam Gantry Plate – Double Wide
