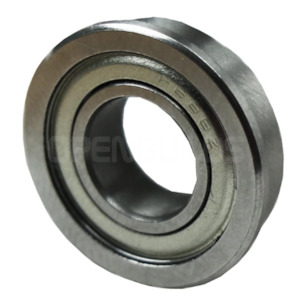

Flanged Ball Bearing

These bearings fit perfectly when coupled with any plate with a 16mm hole. Designed to work with applications such as the 8mm Acme Lea d Screw.

Product Features

- Eliminates the need for recessed holes on plates
- Rated to withstand as much as 6000 RPMs
- All components are manufactured and tested under stringent guidelines
- Made of durable chrome steel for high wear applications

What is Included

- 1 x Flanged bearing 688zz 8x16x5

Product Specifications

- ABEC 3
- RPM rating 3600 - 4300
- Dynamic load rating: Cr(N)1252
- Static load rating: Cor(N)592
- Bore: 8mm
- OD: 16mm
- Width: 5mm
- Chrome Steel
- Color: Silver
