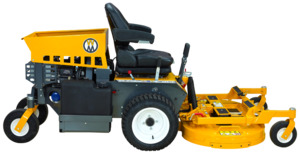

Walker B27i Zero Turn Mower

Due to the size and weight of these items, it can be hard to provide an accurate shipping estimate. Please note that shipping may cost extra depending on your location. Please if you would like a shipping quote before purchase.

About the B27i

This higher horsepower, new generation version of the Model B adds a Kohler 26.5 HP, EFI engine and includes a redesigned unitized chassis and front body. The new clamshell body makes drivetrain component access easier, and the Ogura electric clutch with Soft Start adds convenience and durability for the operator.

An oversized Donaldson 5 inch air filter is fitted with a turbine style pre-cleaner and restriction gauge to reduce maintenance intervals while providing a robust filtration system. A new rear axle design improves rough condition handling, coupled with Walker’s Comfort Seat and optional 20" drive tires, make the B27i a comfortable machine that is powerful, efficient, and ready for larger decks and difficult conditions.

Features:

- 22.5 HP@3600RPM Kohler Command Pro® CH680
- Tilt-up body completely exposes drive train
- Hydro Gear™ ZT3100 Transaxles
- 17.8 Liter Fuel Tank
- 13 kph ground speed

Specifications:

Engine

- Manufacturer: Kohler
- Model: ECH749, EFI
- Displacement: 747 cc (45.6 cu. in.)
- Max Power: 26.5 HP @ 3600 RPM
- Max Torque: 40 ft-lbs
- Cooling System: Air
- Fuel: Automotive Grade Unleaded Gasoline (87 Octane Minimum, 10% Ethanol Maximum)
- Fuel Capacity: 17.8L

Electrical

- Battery: 12V, 300CCA
- Charging System: Flywheel Alternator
- Charging Output: 20 Amp DC (Regulated)

Transmission

- Manufacturer/Model: Dual, Independent Hydro-Gear® ZT3100 Integrated Transaxles
- Steering: Hand Lever Control, Individual Wheel
- Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position
- Parking Brake: Internal Mechanical Cog Lock for each Transaxle (Single Lever Control)
- Forward MPH (km/h): 0-8 (0-13) Infinitely Variable
- Neutral: Transmission Release by Manual Dump Valve

Blade Drive

- PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints
- Blade Drive Clutch and Brake: Ogura Electric Clutch with Soft Start Engagement and Mechanical Brake Stops Blades within Five (5) Seconds of Disengagement

Deck

- Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs
- Cutting Height: 1.5 to 4 in. (4 to 10 cm) 1.5 to 4.5 in. (4 to 11.5 cm)

Tyres

- Drive: 18 x 8.50-10 (Pneumatic 4-Ply Low-Profile)
- Tailwheel: 11 x 4.00-5 (Pneumatic 6-Ply)

Dimensions:

- Length 160cm
- Width 98cm
- Height 100cm
- Weight 280kg
