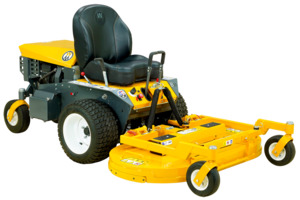

Walker B23 Zero Turn Mower

Due to the size and weight of these items, it can be hard to provide an accurate shipping estimate. Please note that shipping may cost extra depending on your location. Please if you would like a shipping quote before purchase.

About the B23

Perfect for users looking for carbureted, commercial mowing power, the Walker B23 packs a lot of muscle into a compact footprint. The B23 features a new chassis and body design reducing weight and accentuating hillside stability and the Walker beautiful cut. Using Walker add-ons will keep it busy all year long at home or in commercial work.

This engine option is an 22.5-hp Kohler Command Pro. The B-series tractors easily fit into tight spaces and can also reach up to do larger jobs with bigger decks up to 56 inches (Side Discharge Only)

A variety of year-round attachments make the Walker Mower Model B a no-nonsense workhorse for homeowners and commercial operators who don't need to catch grass.

Features:

- 22.5 HP@3600RPM Kohler Command Pro® CH680
- Tilt-up body completely exposes drive train
- Hydro Gear™ ZT3100 Transaxles
- 17.8 Liter Fuel Tank
- 13 kph ground speed

Specifications:

Engine

- Manufacturer: Kohler
- Model: CH680
- Displacement: 674 cc (41.1 cu. in.)
- Max Power: 22.5 HP @ 3600 RPM
- Max Torque: 36.8 ft-lbs
- Cooling System: Air
- Fuel: Automotive Grade Unleaded Gasoline (87 Octane Minimum, 10% Ethanol Maximum)
- Fuel Capacity: 17.8L

Electrical

- Battery: 12V, 300CCA
- Charging System: Flywheel Alternator
- Charging Output: 20 Amp DC (Regulated)

Transmission

- Manufacturer/Model: Dual, Independent Hydro-Gear® ZT3100 Integrated Transaxles
- Steering: Hand Lever Control, Individual Wheel
- Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position
- Parking Brake: Internal Mechanical Cog Lock for each Transaxle (Single Lever Control)
- Forward MPH (km/h): 0-8 (0-13) Infinitely Variable
- Neutral: Transmission Release by Manual Dump Valve

Blade Drive

- PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints
- Blade Drive Clutch and Brake: Ogura Electric Clutch with Soft Start Engagement and Mechanical Brake Stops Blades within Five (5) Seconds of Disengagement

Deck

- Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs
- Cutting Height: 1.5 to 4 in. (4 to 10 cm) 1.5 to 4.5 in. (4 to 11.5 cm)

Tyres

- Drive: 18 x 8.50-10 (Pneumatic 4-Ply Low-Profile)
- Tailwheel: 11 x 4.00-5 (Pneumatic 6-Ply)

Dimensions:

- Length 160cm
- Width 99cm
- Height 100cm
- Weight 280kg
