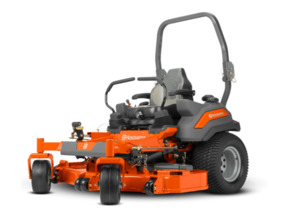

Husqvarna Z560X Zero Turn
Please note: This product may not be available in-store currently, so please to find out about availability. About the Z560X
The Husqvarna Z500 series zero turn mower represents the latest design focused on productivity, durability and cut quality. Providing extreme comfort, high ground speeds and superior traction adds up to exceptional mowing efficiency. Industrial strength throughout the entire design assures a long & durable service life in commercial mowing applications. Careful design consideration provides unprecedented ease in serviceability.
Design
Consumer Semi-Professional ✓ Professional
Professional Use: Professional Husqvarna ZTR® Zero-Turn Mowers give you performance, productivity and comfort, on a commercial level. Heavy-duty steel frames and commercially rated hydraulic systems are just two of the features that will give you the ultimate mowing experience.
Highlights
- Motor/Engine Manufacturer Kawasaki
- Cutting Width 60 inch
- Productivity 5.8 acres/hr Features
- Premium seat Heavily bolstered cushions combined with a dial by weight full suspension, provide all day comfort for the operator. Added elastomeric vibration control (EVC) reduces fatigue
- Large fuel capacity Twelve gallons of fuel capacity for all-day cutting capability
- LED fuel gauge The automotive-style LED fuel gauge lets you know exactly how much fuel is remaining and warns you when you are too low
- Automatic park brake system The new patent pending park brake system automatically activates or deactivates as the steering levers are moved outward or inward, freeing the user of the task
- Heavy-duty fabricated cutting deck A deep draw deck, heavy-duty cutting blades and an efficient flow design allow for rapid cut speeds with a high quality finish
- Cast aluminium spindles 10" diameter commercial cast aluminium spindles with tapered roller bearings more effectively spread impact loads for extended durability
- HydroGear ZT5400 Transmissions Heavy duty integrated commercial transmissions that improve the operators control while reducing noise and vibration
- Roll Over Protection System (ROPS) The easily foldable ROPS protects the user and can be lowered in areas without the proper clearance
- AGM Battery A smaller and more robust battery adopted from the transportation industry provides better reliability, improved longevity and more service space
- Deck height adjustment The deck lift system is spring assisted and allows convenient hands-free operation. A simple locking pin adjusts cut height
Specifications
Capacity
- Productivity 5.8 acres/hr
- Speed forward max 12 mph
- Speed forward max 19.3 km/h
- Power output 31 hp
Engine
- Motor/engine manufacturer Kawasaki
- Engine name FX Series
- Cylinder displacement 61 cu.inch
- Cylinder displacement 999 cm³
- Cylinders 2
- Engine cooling Air
- Generator 15 A
- Air filter type Heavy-Duty Canister Style
- Power/fuel type Gasoline
- Engine lubrication type Full pressure with oil filter
- Oil filter Yes
- Fuel tank volume 45.4 l
- Fuel tank volume 12 gal (US)
- Fuel tank location Side (Dual)
Equipment
- Seat material Vinyl
- Seat spring Yes
- Seat back height High
- Hour meter type Yes
- Cup holder Yes
- Hinged armrests Standard
- ROPS Yes
- Seat type Premium, suspension
Drive System
- Transmission type Hydrostatic
- Transmission manufacturer Hydro-Gear
- Transmission model ZT-5400
- Pump displacement 16 cm³
Dimension
- Base machine, length 81 in
- Base machine, length 206 cm
- Base machine, height 46 in
- Base machine, height 117 cm
- Base machine, width (chute down) 74 in
- Base machine, width (chute down) 188 cm
- Base machine, width (chute up) 63.75 in
- Base machine, width (chute up) 161.9 cm
- Weight 1309 lbs
- Weight 594 kg
- Base machine, height (ROPS down) 46 in
- Base machine, height (ROPS down) 117 cm
- Base machine, height (ROPS up) 73 in
- Base machine, height (ROPS up) 185 cm
Cutting Deck S
