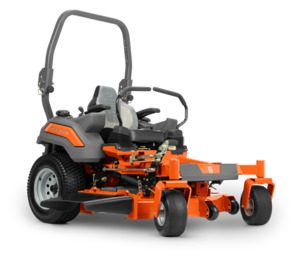

Husqvarna Z554L Zero Turn
The Husqvarna Z500 series zero turn mower represents the latest design focused on productivity, durability and cut quality. Providing extreme comfort, high ground speeds and superior traction adds up to exceptional mowing efficiency. Industrial strength throughout the entire design assures a long & durable service life in commercial mowing applications. Careful design consideration provides unprecedented ease in serviceability. Design
Consumer Semi-Professional - ✓ Professional
Professional Use: Professional Husqvarna ZTR® Zero-Turn Mowers give you performance, productivity, and comfort, on a commercial level. Heavy-duty steel frames and commercially rated hydraulic systems are just two of the features that will give you the ultimate mowing experience
Highlights
- Motor/engine manufacturer Kawasaki
- Cutting width 54 in
- Productivity 4.4 acres/hr Features
- Premium seat Heavily bolstered cushions provide all day comfort for the operator. The two tone vinyl covers are replaceable in the event of damage
- Large fuel capacity Twelve gallons of fuel capacity for all-day cutting capability
- LED fuel gauge The automotive style LED fuel gauge lets you know exactly how much fuel is remaining and warns you when you are too low
- Automatic park brake system The new patent pending park brake system automatically activates or deactivates as the steering levers are moved outward or inward, freeing the user of the task
- Heavy duty fabricated cutting deck A deep draw deck, heavy duty cutting blades and an efficient flow design allow for rapid cut speeds with a high quality finish
- Cast aluminium spindles 10" diameter commercial cast aluminium spindles with tapered roller bearings more effectively spread impact loads for extended durability
- HydroGear ZT4400 Transmissions Heavy duty integrated commercial transmissions that improve the operators control while reducing noise and vibration
Specifications
Cutting Deck
- Cutting width 54 in
- Cutting width 137 cm
- Cutting deck type 10-gauge fabricated
- Cutting methods Collect/Mulch/Side discharge
- Cutting deck material Steel
- Deck thickness 10 gauge
- Deck thickness 3 mm
- Cutting height steps 16
- Blade engagement Electric clutch
- Clutch rating 150 ft.lb
- Clutch rating 203.37 Nm
- Blades 3 pcs
- Blade-tip speed 18500 fpm
- Blade-tip speed 93.98 m/s
- Anti-scalp wheels 2
- Nose roller No
- Deck lifting system manual, foot assisted
- Powder-coated cutting deck Yes
- Spindle/mandrel type Aluminium, commercial
- Greasable mandrels Yes
- Deck Wash Port No
- Cutting height max 5 in
- Cutting height max 127 mm
- Cutting height min 1 in
- Cutting height min 25.4 mm
Drive System
- Transmission type Hydrostatic
- Transmission manufacturer Hydro-Gear
- Transmission model ZT-4400
- Pump displacement 12 cm³
- Fan-cooled pumps Yes
Engine
- Motor/engine manufacturer Kawasaki
- Engine name FX Series
- Cylinders 2
- Generator 15 A
- Power/fuel type Gasoline
- Engine lubrication Full pressure with oil filter
- Oil filter Yes
- Fuel tank volume 45.4 l
- Fuel tank location Side (Dual)
Equipment
- Cup holder Yes
- Hour meter Yes
- Seat type Professional
- Seat back height High
- Seat material Vinyl
- Hinged armrests Standard
- Seat spring Yes
Dimensions
- Base machine, length 81 in
- Base machine, length 206 cm
- Base machine, height 46 in
- Base machine, height 117 cm
- Base machine, width (chute down) 68.25 in
- Base machine, width (chute down) 173.3 cm
- Base machine, width (chute up) 55 in
- Base machine, width (chute up) 139.7 cm
- Weight 551 kg
- Base machine, height (ROPS down) 117 cm
- Base machine, height (ROPS up) 185 cm
- Tyre size, front Width 6 in
- Tyre size, front Diameter 13 in
- Wheel/rim size, front Diameter 6.5 in
Capacity
- Productivity 4.4 acres/hr
- Productivity 17806.2 m²/h
- Speed forward max 12 mph
- Speed forward max 19.3 km/h
- Speed forward min 0 mph LIST
