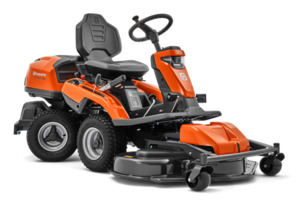

Husqvarna R316TSX AWD Rider Mower



About the 316TSX AWD

The Husqvarna 316TSX AWD is a powerful and versatile Rider with twin cylinder engine and All Wheel Drive. The 103cm/112cm Combi cutting deck options offers first class results. Suitable for landowners who demand superior efficiency, manoeuvrability and perfect results all year round. The articulated steering system and front mounted cutting deck enables intuitive operation, excellent mowing accessibility and great overview of your working area. Equipped with Xtra efficiency, an intuitive display, dual LED headlights and Bluetooth connectivity allowing you to easily monitor your rider via the Husqvarna Connect app.

Upgrade to a 5-Year Warranty with our 4-Stroke Ride-On Warranty Add-On ! Simply add to your cart in the same transaction, and get upgraded to a 5 Year Domestic Warranty! Terms and Conditions apply. Highlights


- All-wheel drive
- Kawasaki F Series V Twin 18HP engine
- Power steering
- Different deck options
- Accessories available Features


- Power steering makes driving less strenuous and more enjoyable.
- Steering wheel with comfortable and defined grip areas with soft touch surface and knob for easier operation.
- Quick height adjustment without the need of tools.
- The intuitive HMI display communicates with the driver through visual symbols and warning sounds, assists in handling and gives real time data and warnings.
- Front mounted cutting deck for excellent accessibility into corners and under bushes, park benches.
- With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low centre of gravity contributes to extra traction as well as a comfortable "sit in" feeling for the user.
- Thanks to the external fuel cap, you don't have to open the engine hood when taking on more fuel. The extra wide fuel tank opening makes refueling even easier
- Controls are easily accessible and designed for optimum user comfort.
- The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.
- BioClip® (mulching) provides excellent cutting results on frequently cut areas. The grass is cut into fine pieces that quickly decompose and return to the lawn as natural fertiliser.
- Large wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.
- Thanks to the rear mounted engine, you get a better overview of the mowing and less noise and emissions in the driver’s area.
- The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride on uneven surfaces.
- The tilting hood and easy access servicing points make maintenance and servicing easy.
- The cutting deck is equipped with pivoting wheels for extra smooth operation when making turns. The wheels also prevent damage to the lawn surface.
- Convenient bottle holder for refreshments. Specifications:

Engine:


- Power/fuel type Gasoline
- Net power at preset rpm Energy 9.8 kW
- Motor/engine manufacturer Kawasaki
- Engine name FS Series V-Twin
- Cylinder displacement 603 cm³
- Cylinders 2
- Engine cooling Fan/Air
- Engine lubrication type Full pressure
- Oil filter Yes
- Exhaust emissions (CO2 EU V) 851 g/kWh

Battery:


- Battery capacity 24 Ah
- Battery type Lead-Acid
- Battery pack weight 7.2 kg
- Battery manufacturer Global

Cutting Deck:


- Uncut circle 30 cm
- Cutting width, min 94 cm
- Cutting width, max 112 cm
- Cutting height min 25 mm
- Cutting height max 75 mm
- Blade engagement Automatic

Dimensions:


- Tyres F/R 170/60-8
- Wheelbase 88.7 cm
- Ground clearance 85 mm
- Base machine, length 202 cm
- Base machine, width 89 cm
- Base machine, height 115 cm
- Gross weight towed 125 kg

Drive System:


- Transmission type Hydrostatic
- Transmission manufacturer, rear Tuff Torq
- Drive method Dual pedal-operation
- Speed forward max 9.5 km/h
- Speed reverse max 9.5 km/h
- Transmission manufacturer, front Tuff Torq
- Transmission model, front KTM10LB
- Transmission model, rear K574RA

Equipment:


- Seat suspension Yes
- Hour meter type Digital with pre-programmed service intervals
- Seat material PU
- Seat back height High
- Foldable seat Yes
- Steering wheel type Comfort
- Parking brake, type Disc

Sound and Noise:


- Sound pressure level at

Store:
City Honda Manawatu
SKU:
970 54 29-10
Price:
$17,290
