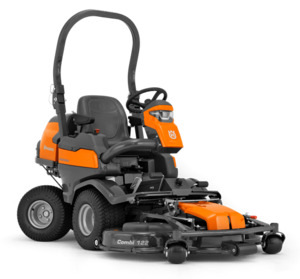

Husqvarna P 524X Rider Mower

About the P 524X Husqvarna P 524X is a front-mounted petrol ride-on lawn mower, built for commercial use. Compact and versatile with articulated steering, All-Wheel Drive and a powerful engine from Kawasaki. An electric attachment lift enables efficient and comfortable work. Intended for facility management companies, sports clubs and for contractors who want a maneuverable ride-on solution for year-round duties in complex areas. Delivered deck-less, can be equipped with 112 and 122 cm Combi cutting decks.
Highlights

- Motor Kawasaki FX Series V-Twin
- Net power 13.9 kW
- Cutting width min-max 112 cm- 122 cm
- Uncut circle 50 cm
Features

- Articulated steering The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior maneuverability with a minimum turning radius at full lock.
- All-Wheel Drive (AWD) The machine’s low Centre of gravity in combination with the high-performing AWD-system gives excellent slope and hillside stability.

- Durable ladder frame Heavy-duty steel ladder frame with reinforcements combined with an open design for excellent serviceability.
- Hydraulic power steering Heavy-duty hydraulic-cylinder power steering makes driving less strenuous.
- OHV-engine by Kawasaki Equipped with a Kawasaki V-twin engine with overhead 90° valves, high performance lubrication system, cast iron cylinder liners and dual stage canister air filter. Combines exceptional power and torque with fuel efficiency and reduced emissions.
- Versatile usage A wide range of cutting decks and attachments will make your front mower exceptionally versatile, all year round.
- Quick coupling Unique quick coupling allows attachments to be changed quickly and efficiently without tools.
- Trimming ability The front-mounted cutting deck gives an excellent overview of the working area, enabling precise, close-up trimming.
- Mowing accessibility The low profile front-mounted cutting deck gives unbeatable accessibility in under fences, bushes, park benches.
- Ergonomic operation Ergonomic operator’s interface for a comfortable ride during long working hours.
- Easy-access controls Operator environment designed around the user. The control panel is raised with all controls ergonomically positioned for easy access. The most frequently used controls are positioned at the front while controls used less often are positioned further back.
- Four large wheels Large wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.
- Dual LED lights Dual LED lights for enlarged lighted area and safer operation in darker conditions. Improved visibility, both near and remote.
- Electric engaged parking brake Parking brake with electric engagement enables safe handling in seated mode by operator as well as remote mode using the FlexiDrive remote control unit (P 524XR EFI).
- Roll Over Protective Structure (ROPS) The vehicle is equipped with a Roll Over Protective Structure (ROPS) and seat belts certified to five international standards including OSHA and SAE requirements. The ROPS ensures a safe ride for the operator.
- Power outlet Electrical front- and rear outlets for power and control of attachments. Simple installation and only needs to be installed once, fits all attachments requiring electric control. Kit includes power outlet, electric wiring and switches for the control panel (available as separate accessory).
- Commercial grade transmission High-specified variable piston pumps with separate gear boxes for front and rear axle.
- Cast iron rear wagon For improved durability the complete rear wagon is one piece of ductile cast iron.
- Improved robustness The Husqvarna X series facelift features several improvements. These updates include a more reliable, upgraded PTO belt system, a hardwearing foot plate made of corrugated steel sheet and a more compliant and robust pedal system. For greater rigidity and reliability, the position for the cutting height adjustment has also been moved to the cutting deck.
- Greaseable mandrels For easy maintenance and longer lifetime.
- Service position Service position on the cutting deck facilitates cleaning and service.
- Ready for Combi deck Prepared for the high-performing and unique Combi deck. Designed to deliver a cutting result in top-class, offering two cutting methods in one deck; mulching or rear discharge (mulch plug removed). Stamped from a single piece of steel plate in a flow-optimized design to deliver best in class mulch result.

Specifications Engine P524X RIDER P 524X (2023-) Art no: 970 60 15‑01 Power/fuel t
