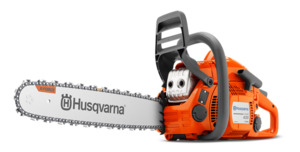

Husqvarna 435 e-series II Chainsaw
About the 435 E-Series
Second generation lightweight and efficient all-round saw, ideal for those looking for a chainsaw that is exceptionally easy to start and manoeuvre. Starts easily also with a slower pull, comes with slimmer saw body and flip-up tank caps. Featuring X-Torq® engine for lower fuel consumption and reduced emission levels. Equipped with Smart Start®, fuel pump and Auto return stop switch for easier starting.
Upgrade to a 5-Year Warranty with our Petrol Warranty Add-On! Simply add to your cart in the same transaction, and get upgraded to a 5 Year Domestic Warranty! Terms and Conditions apply. Design (Type of use)
Occasional Use ✓ Part-Time Use Full-Time Professional Use
Part-time use: Husqvarna’s all-round chainsaws are light-weight, efficient and exceptionally easy to start and manoeuvre. They all feature X-TORQ® engine for lower fuel consumption and reduced emission levels and are equipped with fuel pump and Auto return stop switch for easier starting. Highlights
- Bar length (inch)16"
- Cylinder displacement 40.9 cm³
- Power output 1.6 kW
- Weight (excl. cutting equipment) 4.4 kg Features
- Air Injection® Centrifugal air cleaning system for reduced wear and longer operating time between filter cleaning
- X-Torq® Delivers lower fuel consumption and reduced exhaust emission levels in accordance with the world's most stringent environmental regulations
- LowVib® Effective anti-vibration dampeners absorb vibration, sparing the user's arms and hands
- Smart Start® The engine and starter have been designed so the machine starts quickly with minimum effort. Resistance in the starter cord is reduced by up to 40%
- Inertia chain brake Effective inertia-activated chain brake
- Flip-up tank cap The flip-up tank cap is easy to open and close when refuelling
- Quick-release air filter Facilitates cleaning and replacement of the air filter
- Felling marks Distinct felling marks for better felling precision
- Three-piece crankshaft Forged three-piece crankshaft for maximum durability for the toughest applications
- Visible fuel level Transparent fuel indicator makes it easy to check fuel level
- Snap-lock cylinder cover Snap-lock cylinder cover saves time when changing spark plugs and cleaning
- Easy to start Combined start/stop switch, Smart Start® and fuel pump make the saw very easy to start
- Easy starting Air purge for very easy starting Specifications
Engine
- Power output: 1.6 kW
- Cylinder displacement: 40.9 cm³
- Maximum power speed: 9000 rpm
- Idling speed: 2900 rpm
- Torque, max.: 2 Nm
- Torque, max. at rpm: 6300 rpm
- Clutch engagement speed (±120): 4300 rpm
- Fuel consumption: 652 g/kWh
- Fuel consumption: 1.08 kg/h
- Electrode gap: 0.5 mm
- Ignition module air gap: 0.3 mm
- Oil pump type: Fixed flow
- Exhaust emissions (CO2 EU V): 813 g/kWh
Equipment
- Bar length (inch): 16"
- Chain type: SP33G
- Sprocket type: Spur 7
- Bar mount type: Small
- Recommended bar length, min-max: 13-18 in
Dimensions
- Weight (excl. cutting equipment): 4.4 kg
Lubricant
- Oil tank volume: 0.25 l
Sound and Noise
- Sound power level, guaranteed (LWA): 114 dB(A)
- Sound power level, measured: 112 dB(A)
- Sound pressure level at operators ear: 102 dB(A)
Vibration
- Equivalent vibration level (ahv, eq) front handle: 3.8 m/s²
- Equivalent vibration level (ahv, eq) rear handle: 4.2 m/s²
