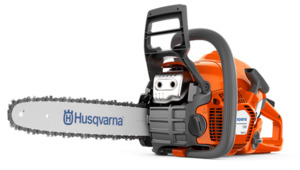

Husqvarna 135 Mark II Chainsaw
About the 135 Mark II Chainsaw
Robust, reliable and easy to use saw with ample cutting performance for homeowners. The perfect garden chainsaw for occasional cutting tasks such as cutting firewood and felling smaller trees. Starts quickly and handles easily, and thanks to the side-mounted chain tensioner, tensioning the chain is both quick and easy.
Upgrade to a 5-Year Warranty with our Homeowner Petrol Warranty Add-On ! Simply add to your cart in the same transaction, and get upgraded to a 5 Year Domestic Warranty! Terms and Conditions apply. Design (Type of use)
✓ Occasional Use Part-Time Use Full-Time Professional Use
Occasional use: These chainsaws are ideal for homeowners and lighter cutting tasks and hobby work. They are easy to start and operate, with built-in Husqvarna features like ergonomic design, facilitating technology and powerful X-TORQ® engine with low emissions. Highlights
- Bar length (inch): 16"
- Cylinder displacement: 38 cm³
- Power output: 1.6 kW
- Weight (excl. cutting equipment): 4.7 kg Features
- Air Injection® Centrifugal air cleaning system for reduced wear and longer operating time between filter cleaning
- X-Torq® Delivers lower fuel consumption and reduced exhaust emission levels in accordance with the world's most stringent environmental regulations
- Smart Start® The engine and starter have been designed so the machine starts quickly with minimum effort. Resistance in the starter cord is reduced by up to 40%
- LowVib® Effective anti-vibration dampeners absorb vibration, sparing the user's arms and hands
- Combined choke/stop control Combined choke/stop control allows for easier starting and reduces the risk of engine flooding
- Inertia chain brake Effective inertia-activated chain brake
- Chain tensioning from the side Allows quick and convenient chain tensioning
- Fuel pump Fuel pump designed for easy starting Specifications
Engine
- Power output: 1.6 kW
- Cylinder displacement: 38 cm³
- Maximum power speed: 9000 rpm
- Idling speed: 3000 rpm
- Torque, max.: 1.84 Nm
- Torque, max. at rpm: 8000 rpm
- Clutch engagement speed (±120): 4000 rpm
- Fuel consumption: 725 g/kWh
- Fuel consumption: 0.725 kg/h
- Spark plug: NGK BPMR7A
- Electrode gap: 0.55 mm
- Ignition module air gap: 0.3 mm
- Oil pump type: Automatic
- Exhaust emissions (CO2 EU V): 804 g/kWh
Equipment
- Bar length (inch): 16"
- Chain type: S93G
- Sprocket type: Spur 6
- Bar mount type: Small
- Recommended bar length, min-max: 14-16 in
Dimensions
- Weight (excl. cutting equipment): 4.7 kg
Lubricant
- Lubricant type: Husqvarna 2 stroke or equiv. at 50:1
- Oil tank volume: 0.26 l
Sound and Noise
- Sound power level, guaranteed (LWA): 116 dB(A)
- Sound power level, measured: 114.34 dB(A)
- Sound pressure level at operators ear: 102 dB(A)
Vibration
- Equivalent vibration level (ahv, eq) front handle: 3.72 m/s²
- Equivalent vibration level (ahv, eq) rear handle: 5.5 m/s²
