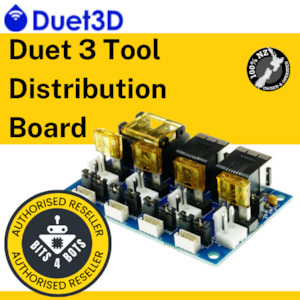

Duet 3 Tool Distribution Board
This board allows for the connection of up to 4 Duet 3 Toolboards to the Duet 3 Mainboard at one time, greatly simplifying the CAN-FD bus and power wiring.
Tool board power outputs are individually bused, and the CAN-FD bus connections can by bypassed if less than 4 tools are connected.
These can be connected to other Duet 3 CAN-FD bus expansion boards (or other tool distribution boards) via the RJ11 connector for CAN-OUT. FEATURES Connectivity
CAN IN – RJ11.
CAN OUT – RJ11.
4x CAN Loops to toolboards – JST ZH.
Jumpers to bypass unused loops, Bus termination resistor on board (jumper selectable). Power
12-32V VIN distributed to 4x power out via 4x 5A fused.
Output power connectors – JST VH. For more information, follow the link below
https://www.duet3d.com/duet3tooldistribution
