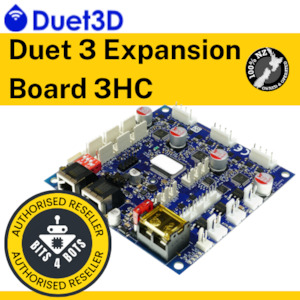

Duet 3 Expansion Board 3HC

Bits4bots is an authorised reseller of Duet3d products

The Duet 3 Expansion board is a CAN-FD connected, high current, full featured expansion board for the Duet 3 mainboards. Pair one of these expansion boards with a Duet 3 Mainboard 6HC or a Duet 3 Mini 5 to control 3 high current stepper drivers, 3 high current loads, 6 fans and 6 IO channels. Further 3HC expansion boards, tool boards and 1XD expansion boards can be added to the CAN-FD bus if necessary to complete your machine design. FEATURES Processor

Powerful 32bit Atmel ARM Cortex-M4F microcontroller running at up to 120MHz. Connectivity

CAN-FD BUS for connection to Duet 3 Mainboards (compatible with the Duet 3 Mainboard 6HC and the Duet 3 Mini 5 ). Stepper Drivers

3x TMC2160/5160 high-current drivers with the latest Trinamic features. Maximum motor current 6.3A peak per phase (4.45A RMS). High current outputs

3x 5A PWM outputs for extruders and similar. Medium current outputs

6 PWM controllable outputs for fans or similar. 3 of these support 4 wire fans including tacho reading. IO

6 I/O connectors with 3.3V output signal level and 30V-tolerant inputs. 3 thermistor/PT1000 inputs and support for two temperature daughterboards for up to 4 PT100 or thermocouple sensors

3 thermistor/PT1000 inputs.
Support for two temperature daughterboards for up to 4 PT100 or thermocouple sensors. Supply Voltage

12-32V.

For more information, follow the link below
https://www.duet3d.com/duet3expansion3hc
