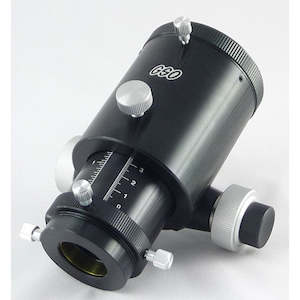

Focuser Linear Bearing 2" 10-1 Reflector
A Linear Bearing Crayford design focuser for newtonian reflectors.
The friction can be adjusted with a large thumbscrew, a second thumbscrew can lock the focuser tightly in position. Features a 2" brass compression ring, adaptor from 2" to 1.25" with brass compression ring and 2" filter thread.
Ultra smooth focus motion with 10:1 Microfocus knob.
Has a load capacity up to 4.1kg. Base curve suits a 230mm (8" telescope) tube but can be packed for other size tubes.
Specifications (With Curved Base Plate):
Minimum focuser height (without 1.25" adapter) = 77.5mm
Maximum focuser height (without 1.25" adapter) = 128mm
Tube travel = 50mm
Drawtube outer diameter (cut-out in your telescope tube must exceed this) = 59mm
Focuser weight (with 1.25" adapter) = 780gm
