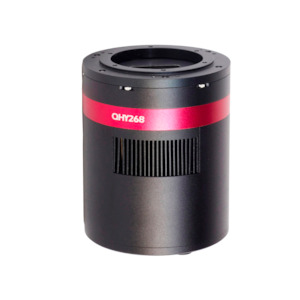

QHY268 PH Colour Camera

This camera Is normally shipped to order with a delivery time of 2-4 weeks.Please to confirm current pricing and delivery times. Overview

The QHY268M/C is a new generation of back-illuminated CMOS cameras with true 16-bit A/D and 3.76um pixels. This new Sony sensor is an ideal CMOS sensor exhibiting no amplifier glow. 16-bit A/D gives high-resolution sampling of the whole full well range. Digitizing 0-65535 levels yields a smooth image with a continuous gradation of greyscale levels. The QHY268M/C is a cooled, back-illuminated, CMOS camera based on the Sony IMX571 sensor with native 16-bit A/D and 3.76um pixels.

The QHY268C is a new generation of back-illuminated CMOS cameras with true 16-bit A/D and 3.76um pixels. This new Sony sensor is an ideal CMOS sensor exhibiting no amplifier glow. 16-bit A/D gives high-resolution sampling of the whole full well range. Digitizing 0-65535 levels yields a smooth image with a continuous gradation of greyscale levels. The QHY268C is a cooled colour, back-illuminated, CMOS camera based on the Sony IMX571 sensor with native 16-bit A/D and 3.76um pixels. Native 16-Bits

The Sony IMX571 sensor has on-chip 16-bit A/D for highest resolution of greyscale. The output is real 16-bits with 65536 levels. Compared to 12-bit and 14-bit A/D, 16-bits provides higher sampling resolution. At high gain, the camera yields close to 1e-/ADU with no sample error and low read noise. High Dynamic Range

Great full well brings vivid colors. One benefit of the back-illuminated CMOS structure is improved full well capacity. This is particularly helpful for sensors with small pixels. Even with unbinned, the 3.76um pixels of the QHY268C has a superb full well capacity of 75ke-. Ultra Low Read Noise

- 0.7e- Noise at High gain
- 3.5e- Noise at Low Gain

The QHY268C has only 0.7 electron of read noise at highest gain and 6.8 FPS at full resolution readout speed. One electron of read noise means the camera can achieve a SNR>3 at only 4 to 6 photons. This is perfect performance when conditions are photon limited, i.e., short exposures, narrow band imaging,., making this large area sensor ideal for sky surveys and time domain astronomy.
Back-Illuminated, High QE

The back-illuminated Sony Exmor sensor has about twice the QE of similar front illuminated sensors. The QHY268C has zero amplifer glow. In addition the dark current is only 0.0005e/pixel/sec @ -20C.

Full technical details can be found at
https://www.qhyccd.com/astronomical-camera-qhy268/
