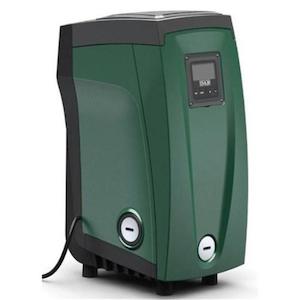

DAB E.SYBox

The an all-in-one water cooled pressure pump and controller system.

Suitable for a medium to large house.

For a small house check out our Mini. Key features

- Water cooled motor and sound dampening casing create the quietest pressure pump available today
- Energy efficient variable speed motor - operating from 0.3KW to 1.5KW
- Powerful performance - flow up to 2 Litres/Second and head up to 6 Bar
- Self priming down to 8 Metres
- Protection against dry running (auto & manual reset options)
- Frost protection
- Anti-vibration mountings
- Vertical installation recommended
- Variable positions for in-let and out-let pipes
- 2 year warranty Technical specifications

- Voltage: 220-240V 1~
- Frequency: 50/60Hz
- Suction: 1" BSP F
- Discharge: 1" BSP F
- Max amp: 10 amp
- Max power: 1550W
- Protection class: IP44
- Motor class: F
- Dimensions: 263mm x 352mm x 564mm
- Weight (empty): 27kg
- Max working pressure: 8 Bar
- Max liquid temp: 40°C
- Max working environment: 50°C
