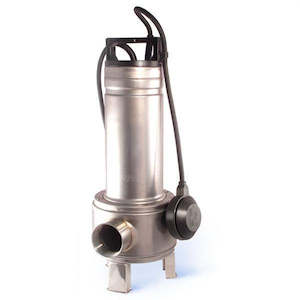

Lowara Domo 7 Pump

Submersible pumps for solid-laden wastewater. Use to empty septic tanks, residential sumps, wells and tanks in industrial and ecological applications, tanks or reservoirs, as well as pumping of effluent and emergency draining in flooded areas.

Made in stainless steel, with mechanical seal and versions with twin-channel impeller, Vortex impeller, and grinder impeller. Supplied with or without float switch.
Specifications

- Delivery: up to 40 m3/h
- Head: up to 14.5 m
- Power supply: three-phase and single-phase 50 and 60 Hz
- Power: 0.55 kW to 1.5 kW
- Maximum immersion depth: 5 m
- Temperature of pumped liquid: 0°C to 35°C (with pump totally immersed)
- Shaft extension: Stainless steel
- Liquids with suspended solids up to 35 mm
- Insulation class: F (motor dry)
- Protection: IP68
- Length of cable: 10 m Materials

- Pump body, motor casing: Stainless steel
- Impeller: Reinforced nylon
- Inner mechanical seal: Silicon-carbide/Silicon-carbide
- Lubricated by the DRIVELUB System.
- Upper lip seal: NBR
- Shaft extension: Stainless steel
- Handle: Nylon

Complete specifications for Lowara Domo 7 pump
