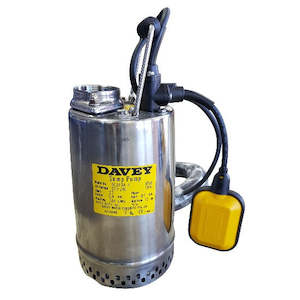

Davey DCS40A Pump

Portable electric submersible drainage pump used for transferring clean or slightly dirty water; dewatering of cellars, garages, ditches and ponds; or decorative water features. Provides up to 400W nominal output. Features and benefits

- Equipped with preset length float switch for automatic operation.
- Open impeller, centrifugal design - able to pump small soft solids in suspension, and is less susceptible to blockage
- Double mechanical shaft seal in oil bath with hard faced silicon carbide / ceramic seal on pump side.
- Sand slinger lip seal
- Corrosive resistant 304 stainless steel motor shell and strainer
- High quality paint finish
- Automatic resetting thermal overload, which protects it against overloading
- HO7RNF oil resistant leads, 10 metres long with 3 pin power plug - easy to connect to power supply, and longer life in dirty water Materials of construction

Motor top: Cast iron

Pump body: Cast iron

Motor shell: 304 stainless steel

Strainer: 304 stainless steel

Impeller: Cast iron

Lip ring: Nitrile

Mechanical seal: Carbon/ceramic on motor side

Seal & bottom bearing housing: Cast iron

Handle: 304 stainless steel

Fasteners: 304 stainless steel

Float & power supply leads: H07RN-F oil resistant Operating limits

Capacities: 240 lpm

Heads to: 12m

Maximum submergence: 10m

Maximum operating temperature: 50ºC
