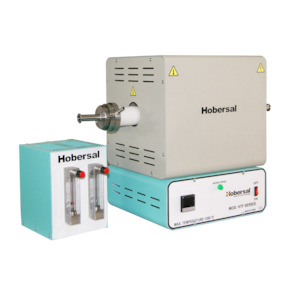

HOBERSAL Universal Tube Furnace - HTF Series
The new HTF series are tube furnaces with a new modern, compact and versatile design with maximum temperatures from 1200ºC and 1300ºC, Kanthal heating elements and high quality and high density thermal insulation that allow high heating rates and low energy consumption
In addition, thanks to the new design, it is possible to work in a vertical operation adding a vertical operation kit.
HTF tube furnaces let work in oxidizing atmosphere, inert or reduced atmosphere and vacuum with our gas and vacuum packages.
- Maximum temperatures of 1200ºC and 1300ºC
- Diameters from 20 mm and 120 mm
- 200, 400, 600, 800 and 1000mm heating zones
- Heated zones: 1, 2, 3 and 5 independent zones
- Ramp programmer up to 64 segments
- Heating pilot indicator light
- Solid state relays provide for lownoise operation
- High density insulation for energy savings
- Air chamber to prevent surface overheating
- Fast heating and cooling
- Thermocouples type K (1200ºC) and S (1300ºC)
- Fan in control panel to protect the electrical parts
