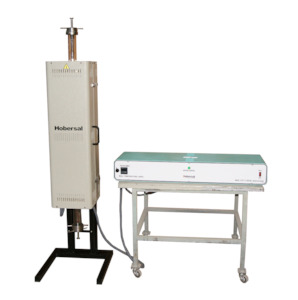

HOBERSAL Split Tube Furnace - HTF-SP-SC Series

Hobersal’s new HTF SP SC design split tubular furnace, versatile and compact up to 1600ºC heated by Kanthal SiC

The new HTF SP SC series are tube furnaces with a new modern, compact and versatile design with maximum temperatures up to 1600ºC, heated by Silicon Carbide (SiC) Kanthal heating elements and high quality and high density thermal insulation that allow high heating rates and low energy consumption

In addition, thanks to the new design, it is possible to work in a vertical operation adding a vertical operation kit.

HTF SP SC high temperature tube furnaces let work in oxidizing atmosphere, inert or reduced atmosphere and vacuum with our gas and vacuum packages.

- Maximum temperatures up to 1600ºC
- Diameters from 20 mm and 120 mm
- 300, 450, 600 and 800 mm heating zones
- Heated zones: 1, 2, 3 and 5 independent zones
- Silicon Carbide heating elements (Kanthal SiC rods)
- Ramp programmer up to 64 segments
- Heating pilot indicator light
- Solid state relays provide for lownoise operation
- High density insulation for energy savings
- Air chamber to prevent surface overheating
- Fast heating and cooling
- Thermocouples type S (1600ºC)
- Fan in control panel to protect the electrical parts
