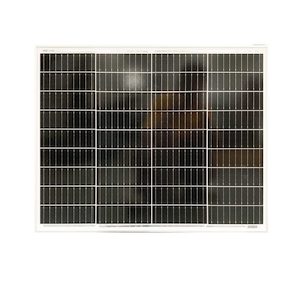

60W PERC Mono PV Solar Panel

60W Mono Cell PERC PV Solar Panel is a tier one product featuring outstanding performance and mechanical warranties. Comes with a customisable 800mm, 4mm2 cable (no MC4 plug). Delivered anywhere in New Zealand.

Warranties:

- 25-year warranty for 80% of output.
- 10-year warranty for 90% of output.
- 5-year limited mechanical warranty.

60W PERC Mono PV Solar Module Characteristic

- High-efficiency solar cells ensure the high performance of 12V solar panels and create more power in peak hours.
- A basic component for a resident off-grid system is widely used in marine, dry camp, garden watering, and other off-grid applications.
- It is designed for maintaining 12-Volt batteries in RVs, cabins, boats, battery-operated gates, backup power, and remore power use.
- Withstand high wind (2400pa) and snow loads (5400pa).
- Grade A solar cells ensure all solar panels have positive power tolerance.
- 25-year transferable power output warranty; 5-year material and workmanship warranty.

Maximising Output

Even with the best solar panels on the market, getting the mazimum energy production out of them requires using the correct solar charge controller. We recommend MPPT Solar Charge Controllers over PWM. The main difference between the two types of charge controllers is that the MPPT solar charge controller is more efficient than a PWM solar charge controller. Currently, the MPPT solar charge controller is the most common type of charge controller and can gain you up to 30% more power than the PWM controllers.

Another essential aspects of maximising the performance of your panels is to keep them clean. We recommend a reqular wash using simple washing up liquid and water. Specification

Feature

Specification

Cell Type

Mono Crystalline Silicon, PERC, Photo Voltaic Solar Cells

Dimension of Module (mm)

575H x 585W x 25D

Weight of Module

3.5kg

Maximum Power at STC (PMAX)

60W

Open-Circuit Voltage (VOC)

21.45V

Short-Circuit Current (ISC)

3.65A

Voltage at PMAX (VMP)

18.15V

Current at PMAX (IMP)

3.30A

Technical Specification

60W 575x585x25

More Information

AA Solar has been supplying solar panels to the New Zealand market for over 20 years. Over this time, we have used, researched and tested many solar panels from a variety of manufacturers and believe their range today is the best quality panels that can be found. Our extensive first-hand experience with these panels over the years proves that they will perform as per specification over their 25-year life span. In addition, AA Solar backs these products with warranties so our customers can enjoy the benefits and peace of mind knowing that your 60W Mono Cell PERC PV Solar Panels can be relied on now and for many years.
