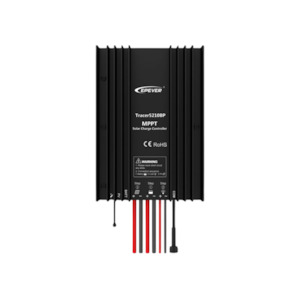

Tracer-BP Solar Charge Controller 20A By Epever
Tracer 5210BP 20A MPPT Lithium Battery MPPT Solar Charge Controller 12/24V Epsolar
Tracer-BP Solar Charge Controller adopts advanced MPPT (Maximum Power Point Tracking) charging methods, resulting in up to 30% charging efficiency increase compared with the PWM charge controllers. The RS485 interface with standard MODBUS communication protocol and 5V,150mA power supply makes it easy for the customer to expand the application. With the accessories like MT50, WiFi module, Bluetooth adapter, IoT module, users can realize remote monitoring and controlling the solar system via app and cloud platform.
Features Tracer-BP Solar Charge Controller 20A Features
- Nominal System Voltage: 12/24VDC Auto
- Battery Type: Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User
- Battery Type: 8.5～32VDC
- Rated Charge Current: 20A
- Rated Discharge Current: 20A
- Rated Charge Power: 260W/12V, 560W/24V
- Max. conversion efficiency: ≤98%
- Tracking Efficiency: ≥99%
- Max. PV open circuit voltage: 100V( at minimum operating environment temperature ）
92V( at 25℃ environment temperature )
- MPP Voltage Range: (Battery voltage 2V)～72V
- Equalisation Voltage: Sealed:14.6V,Flooded:14.8V,User-defined:9-17V
- Boost Voltage: Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V
- Float Voltage: Gel/Sealed/Flooded:13.8V,User-defined:9-17V
- Low Voltage Reconnect Voltage: Gel/Sealed/Flooded:12.6V,User-defined:9-17V
- Low Voltage Disconnect Voltage: Gel/Sealed/Flooded:11.1V,User-defined:9-17V
- Self-consumption: ≤13mA(12V)；≤11.5mA(24V)
- Temperature compensation( for lead-acid battery): -3mV/℃/2V(default)
- Enclosure: IP68
- Communication interface: RS485（ waterproof）
- Operating Temperature Range: -40℃～ 60℃
- Dimensions(LxWxH)(mm): 153×105×52.1
- Net weight:1.20kg
1. The controller can't automatically identify system voltage if lithium batteries are connected.
2. The voltage point is for a 12V system, please 2 in the 24V system. Specification
