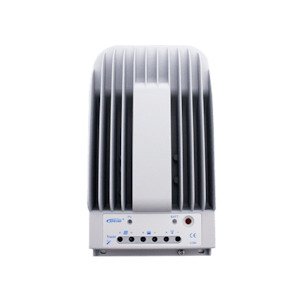

Tracer-BN Series MPPT Solar Charge Controllers (20A-40A) by Epever
Epever's Tracer-BN series MPPT Solar Charge Controller. These rugged products are economical, practical, and long-lived. They are based on Epsolar's typical negative design and advanced MPPT control algorithm, with a die-cast aluminium design for heat dissipation.
With the MPPT control algorithm, the Tracer-BN series of products can quickly and accurately track the photovoltaic array's maximum power point (MPP) in any situation to obtain the maximum solar energy in time, which remarkably improves energy efficiency.
With the Modbus communication protocol interface, it is convenient for customers to expand applications and monitor various applications such as telecommunication base stations, household systems, caravans and RVs, street lighting systems and wilderness monitoring systems.
The all-around electronic fault self-test function and enhanced electronic protection function help prevent damage to system components caused by installation errors or system failures. Features Tracer-BN Series MPPT Solar Charge Controllers Features
- Advanced MPPT technology by Epsolar
- High-quality components perfecting system performance with a maximum conversion efficiency of 98%
- High tracking efficiency up to 99%
- Die-cast aluminium housing ensures excellent heat dissipation
- Diversified load control to meet different requirements
- Four battery type options: Sealed, Gel, Flooded, and USER (programmable)
- Battery temperature compensation
- Multiple load work modes: Manual, Light On/Off, Light on Timer, Time Control
- RS485 ports with MODBUS communication protocol
- Optional PC monitoring software and remote meter for real-time monitoring and battery management parameter setting
- Field upgradable firmware
- Extensive electronic protection
Specifications
Models: Tracer1215BN, Tracer2215BN, Tracer3215BN, Tracer4215BN
Manufacturers Specifications & Certificates
User Manual Tracer BN Series (10A-40A)
EPEVER-Datasheet-tracer-BN (10-40A)
Certificate FCC Tracer-BN（10-40A）.pdf
Certificate EN（IEC）62109 Tracer-BN (10-40A).pdf
Certificate EMC Tracer-BN (10-40A).pdf
Certificate ROHS Tracer-BN (10-40A).pdf
AA Solar can access EPEVER full range see their full range here.
