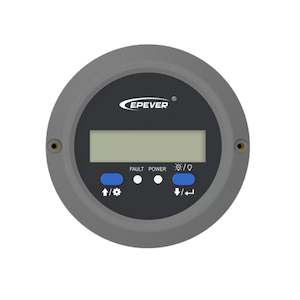

MT91 Remote Meter by Epever

The MT91 remote meter is a next-generation monitoring device specifically designed for EPEVER inverters. It allows users to conveniently configure inverter parameters and provides accurate, comprehensive data analysis. With real-time fault alarms and system monitoring, it ensures seamless oversight of the entire system's performance. The MT91 displays all real-time inverter parameters on a single screen and supports parameter adjustments via simple button operations, making it adaptable to a wide range of user needs. Features

- Dual-interface design for easy connection with EPEVER inverters and optional modules.
- LCD screen with real-time dynamic display of system data.
- Visual error codes for timely notification of warnings and faults.
- Load ON/OFF button for direct control of load output.
- Simple installation and user-friendly operation interface.
Technical Specifications

Model MT91 Compatible Products NPower/TPower/IPower-Plus/IPower Power supply 5VDC Power supply method Inverter communication port LCD visual angle 12' clock LCD backlight Yes Installation method Surface mounting installation Self-consumption 14mA/5V(no backlight)
23mA/5V(backlight) Working temperature -20℃～ 60℃ Storage temperature -35℃～ 70℃ Dimension φ100mm X 19.4mm(Diameter X Height) Mounting dimension φ100mm X 50mm(Diameter X Height) Mounting hole size φ3.5mm Net Weight 65g
