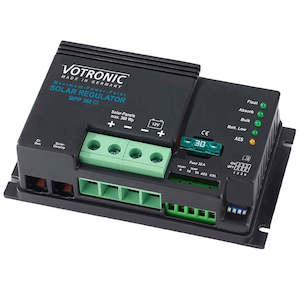

MPP CI Series Dual Battery MPPT Solar Charge Controllers by Votronic

Battery nominal voltage Lead 12V 12V 12V 12V Recommended minimum battery capacity lead >40Ah >60Ah >80Ah >100Ah Battery nominal voltage LiFePO4 12.0 - 13.3V 12.0 - 13.3V 12.0 - 13.3V 12.0 - 13.3V Recommended minimum battery capacity LiFePO4 >30Ah >45Ah >70Ah >90Ah Solar module power (Pmax) 40 - 170 Wp 40 - 260 Wp 50 - 360 Wp 50 - 440 Wp Solar module current max. 0 - 10.0A 0 - 15.0A 0 - 21.0A 0 - 26.0A Solar module voltage (Voc) max. 60V 60V 60V 60V Charging current of the body battery max. 0 - 13.0A 0 - 18.5A 0 - 26.0A 0 - 32.0A Starter battery charging current max. 0 - 1.0A 0 - 1.0A 0 - 1.5A 0 - 1.5A Switching output AES refrigerator - 12V/0.2A 12V/0.2A 12V/0.2A Built-in temperature-controlled cooling fan - ✓ ✓ ✓ Weight 225g 235g 285g 285g Dimensions 131x77x40mm 131x77x40mm 131x77x40mm 131x77x40mm
User Manual

Votronic MPP Controllers.pdf
