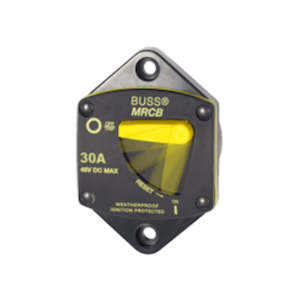

187-Series Circuit Breaker Bluesea

187- Series Circuit Breaker- Panel Mount Combines switching and circuit protection into a single device. Clear, single lever operation, “Trip free" design cannot be held “On" during fault conditions. Waterproof, reassessed mounting holes.

- Maximum Voltage: 48V DC
- Mounting: Surface Mount
- Circuit Breaker Type: Thermally responsive BI-metal blade

187-Series Circuit Breaker - Surface Mount or Panel Mount

- Combines switching and circuit protection into a single device
- Clear, single lever operation
- "Trip Free" design cannot be held "ON" during fault current condition
- Waterproof
- Recessed mounting holes for a clean appearance
- Large Clearance around terminal studs accept heavy gauge wire lugs
- Robust 5/16 M8 terminals provide high-torque connections
- A large lever with vertical/horizontal orientation provides an indication of trip status
- Ignition-protected - safe for installation aboard gasoline-powered boats
- Meets SAE J1171 external ignition protection requirements.

Do not use as a switch where high inrush currents are expected Specification

187-Series Circuit Breaker -Surface Mount Specification

- Maximum Voltage: 48V DC
- Mounting: Surface Mount
- Circuit Breaker Type: Thermally responsive BI-metal blade
