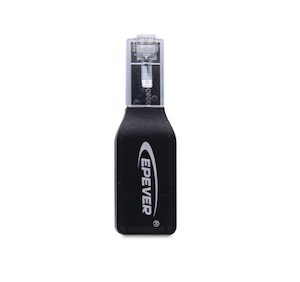

Epever Bluetooth RJ45 D Adapter

EPEVER Bluetooth RJ45 D Adapter is a new Bluetooth adapter suitable for EPEVER solar controller, inverter, and inverter/charger. Adopting Bluetooth 5.0 transmission and BLE (Bluetooth Low Energy) technology, it enables data collection, communication, and wireless monitoring of connected devices.

Epever BLE RJ45 D Product Highlights

- Support communication via phone APP.
- Support data encryption.
- Use immediately after connecting, it is easy and convenient operation.
- Feature fast communication and strong anti and convenient operation.
- Feature fast communication and strong anti-interference ability.
- Directly powered by the communication port
- Up to 10 metres of communication distance
- Products suitable for the Solar Guardian app are TracerAN(10-40A), TracerAN(50-100A), TracerBN, TracerBP, XTRA, DuoRacer, Ipower-Plus, IPT, and Upower-Hi.

Specifications Epever BLE RJ45 D Product Specification:

- Working Voltage: 5V± 0.5V(Powered by RS485 com. port)
- Power Consumption: Average: 5V@10mA; Peak: 5V@60mA
- Communication Distance: ≤10m
- Serial port baud rate: 115200bps
- Communication method: RS485 to Bluetooth
- Connection port: RJ45 port
- Bluetooth protocol: Bluetooth 5.0
- Dimension (L x W xH): 63mm x 19mm x 13.8mm
- Working temperature: -20~70℃
- Enclosure: IP30
- Net Weight: 8.0g

Note: The Bluetooth RJ45 D module is specifically designed to be compatible with the Solar Guardian app.

Solar Guardian APP currently supports TracerAN(10-40A), TracerAN(50-100A), TracerBN, TracerBP, XTRA, DuoRacer, Ipower-Plus, IPT, and Upower-Hi.
An adapter is required for TracerAN(50-100A), TracerBP, DuoRacer, and Upower-Hi
