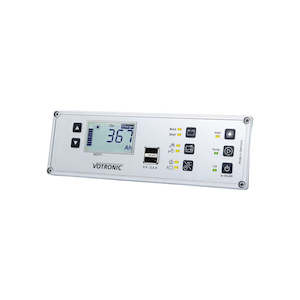

Votronic Power-Control (VPC) Jupiter with Smart-Shunt
The VPC Jupiter is a user-friendly multi-panel system for campers, combining the essential functions and information in one unit. VPC Jupiter 100 with measuring shunt 100A. Votronic Power-Control Jupiter Functions include
- Battery Monitor with Smart Shunt
- Solar Remote Meter
- Tank Level Indicator
- Inside/Outside Thermometer &Clock
- Pump Switch
- Main Switch
- USB charging sockets
VPC Jupiter 100 with measuring shunt 100A
Votronic Power-Control (VPC) Jupiter 100 is an innovative multi-panel system for campers, combining the most essential functions and information in one unit in a user-friendly manner. The information is displayed on a bright graphics display with white illumination. The values are displayed in large size and can be seen easily, even at a great distance and in all lighting conditions. Coloured light-emitting diodes signalling the selected function at all times.
All Votronic Power-Control (VPC) Jupiter 100 units have at least one voltage display for the board and starter battery and a terminal for an external relay as the main switch. An audible alarm (beeper) at the panel, which can be switched off, as well as a visual indication on the display inform, if a value drops below an adjustable energy threshold, the main switch will be switched off automatically in a few seconds to avoid deep discharge of the battery.
- Nominal Voltage Board Battery (V): 12
- Current Consumption (mA): 13-60
- Switching Current Pump max (A): 16
- Dimensions (WxHxD)mm: 200x65x30
- Assembly Dimensions (mm): 185 x 57 x24
Comes complete with fastening screws, two connection cables of 5m length for Votronic solar regulator or Smart-Shunt, two temperature sensors (indoor & outdoor), manual. Specification
Votronic Power Control Brochure
Votronic Power Control Installation and Operating Manual
About Votronic
For 30 years, Votronic has developed and manufactured electronic devices for mobile applications. With more than a quarter century of experience in "Made in Germany" and the knowledge gained through close collaboration with different communities, they work continuously to develop their products further. 30 years in a fast-moving electronic world is an eternity! Only truly innovative and high-quality product lines can compete successfully in the market for so long. The long-term customer satisfaction and the proven durability of our products are real characteristics for our excellent quality and reliability.
