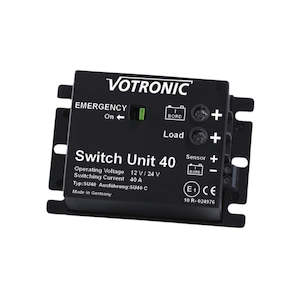

Votronic Battery Switch Unit

Description
Switch Units work based on a bistable relay, allowing very high capacities and low consumption. They are especially suitable as a remote-controlled main switch or load relay on long-term power. Their current carrying capacity is 40A or 100A.

Switch Units can be mote-controlled by a standard switch (1 pol. ON / OFF).

Furthermore the consumer can be switched on and off through an emergency switch at the relay by hand. Suitable for campers and boats

- Easy selection through ON / OFF switch
- High switching current, short time loadable
- Applicable as battery main switch through ON / OFF switch (remote-controlled)
- The switching state monitor is visible from the outside.
- Electronical delay prevents fast reactions like voltage drop or using strong consumer.
- Suitable for long-term usage due to very low consumption of the Switch Unit (compliant EN13976)
- No own electricity consumption if switched off with an external switch (remote control)
- Automatic disconnection under voltage 8.5 V (minimum operating voltage of Switch Unit.

Specifications

Unit Type
Art.-
No. Operating
Voltage
V
Switching & Load Current
cont.
A
Load
Current
short
A Own
Consumption
Idle/On
mA
Cable
Connections Weight
g Switch Unit 40 2071 12 and 24 40 60 (1 Sec.) 0
